Top solar products for home in West Bengal: panels, inverters, batteries and water heaters
A comprehensive homeowner guide to evaluating residential solar equipment. Discover the 5 core solar product categories, compare performance and budgets for 1–3 BHK homes, and learn how to claim up to ₹78,000 in direct government subsidies through Sunray Power Energy.
Sunray Power Technical EPC Team
PM Surya Ghar Official Registered Vendor • Tamluk, West Bengal
Updated September 2026
8 min comprehensive read

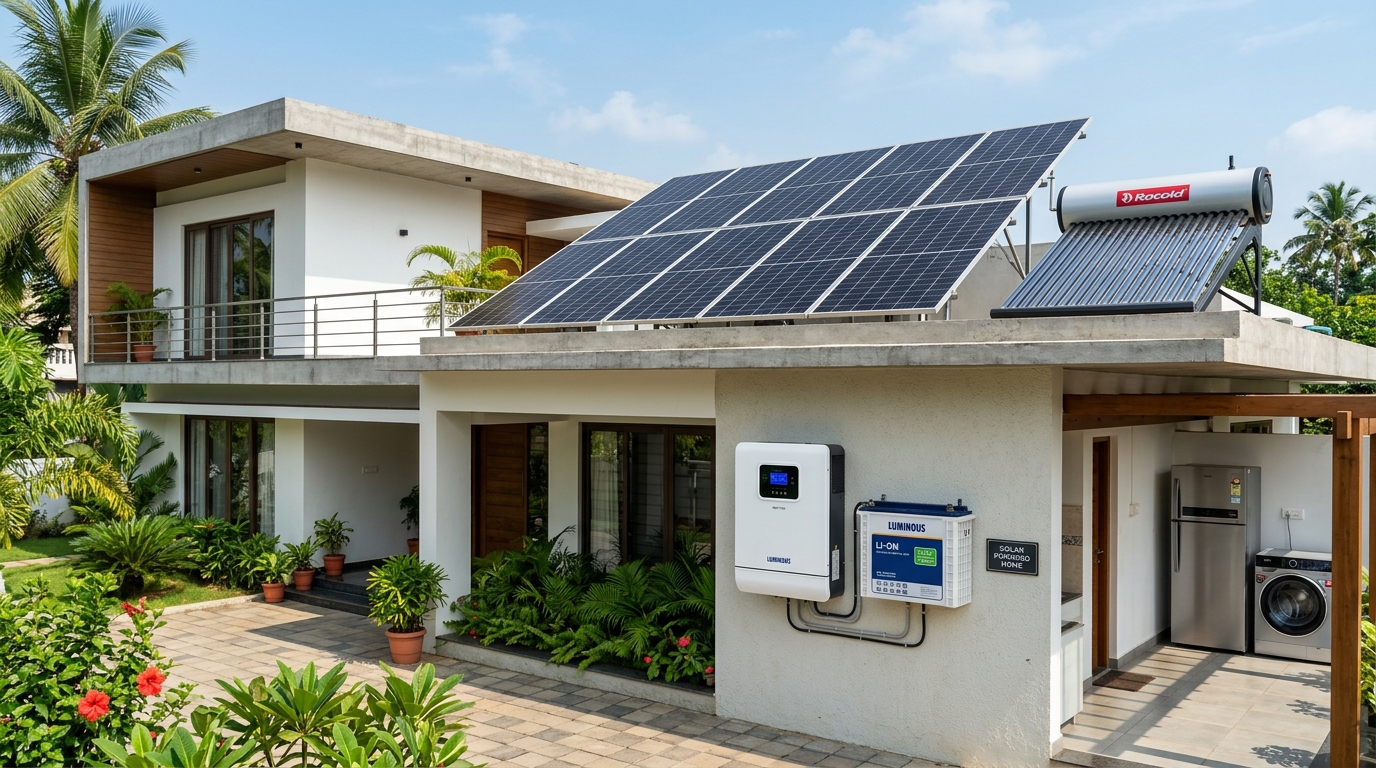

A total clean energy home ecosystem: rooftop solar PV array, solar water heating collector tank, and wall-mounted hybrid inverter with battery backup.
Quick Summary: The 5 Essential Solar Product Categories
1. Rooftop PV Panels: The core energy generators. N-Type TopCon & Mono PERC modules capture solar radiation and feed electricity to your home.
2. Smart Solar Inverters: The system brain converting DC power to 230V AC, with bi-directional grid export and live cloud app monitoring.
3. Lithium Battery Storage: Provides instant power backup during summer storms and load shedding for uninterrupted family comfort.
4. Solar Water Heaters: Uses direct thermal radiation to produce 24/7 hot water, saving up to 35% of winter electricity costs.
1. The 5 Must-Know Solar Products for West Bengal Homes
Building a resilient, cost-effective green home means selecting the right combination of solar products. Here is how each hardware category operates:
A. Rooftop Solar PV Panels
Primary Electricity Generation
Modern residential rooftops utilize 540W to 580W Monocrystalline Half-Cut PERC or N-Type TopCon panels. They require ~100 sq. ft. of shadow-free terrace area per kW and come with a 25-year linear power generation warranty.
B. Smart Solar Inverters (Grid-Tied & Hybrid)
The System Intelligence & Synchronization
Solar inverters convert direct current (DC) into 230V alternating current (AC). On-Grid inverters synchronize with WBSEDCL or CESC to feed surplus power to the grid. Hybrid inverters add battery management logic with dual MPPT tracking.
C. Lithium & Solar Tubular Batteries
Blackout & Night Energy Storage
If your locality suffers from frequent summer load shedding, pairing your inverter with a Lithium Ferro-Phosphate (LiFePO4) battery provides 10–12 years of maintenance-free operation, 90% depth-of-discharge, and ultra-fast charging.
D. Solar Water Heaters (ETC / FPC)
Zero-Electricity Water Heating
Electric geysers are power guzzlers (2,000W to 3,000W). Evacuated Tube Collector (ETC) solar water heaters use vacuum glass tubes to heat 100 to 300 liters of water up to 65°C using thermal sunlight, insulated to keep water hot for 24+ hours.
E. Solar Water Pumps (Domestic & Garden)
For independent bungalows and farmhouses with dedicated borewells or underground sumps, 0.5 HP to 2 HP solar submersible and surface pumps run directly on solar DC power through a variable frequency drive (VFD). They pump overhead water during peak daylight hours without putting any strain on your domestic electricity meter.
2. Performance, Cost & Subsidy Comparison Table
Here is how the primary home solar products stack up against cost, lifespan, and financial return under West Bengal conditions:
| Solar Product | Primary Function | Typical Home Cost | Subsidy Eligibility | Lifespan | ROI Payback |
|---|---|---|---|---|---|
| Rooftop PV Panels (TopCon/Mono PERC) | Converts sunlight into direct electricity for all home appliances | ₹65,000 - ₹2,05,000 (1-3 kW) | ₹30,000 to ₹78,000 DBT | 25 - 30 Years | 3.2 - 3.7 Years |
| On-Grid String Inverter | Converts DC to AC and synchronizes with WBSEDCL/CESC grid | Included in rooftop package | Covered under PM Surya Ghar | 10 - 15 Years (5-10 yr warranty) | Part of PV system |
| Hybrid Inverter + Lithium Battery | Powers home during load-shedding and stores excess day solar | ₹80,000 - ₹1,40,000 extra | PV portion eligible for DBT | 10 - 12 Years (LiFePO4) | 5.5 - 7.0 Years |
| Solar Water Heater (ETC / FPC) | Delivers 24/7 piping hot water without running 3 kW electric geysers | ₹22,000 - ₹38,000 (100L - 200L) | State/MNRE incentives (varies) | 15 - 20 Years | 2.5 - 3.0 Years |
| Solar Water Pump (0.5HP - 2HP) | Pumps water from borewells / sumps to overhead tanks via solar DC | ₹35,000 - ₹75,000 | PM-KUSUM / Special schemes | 15 - 20 Years | 3.5 - 4.5 Years |
3. Matching Solar Products to 1–3 BHK Household Needs & Budgets
Every household has a distinct consumption profile. Choosing the right bundle prevents over-investing or under-sizing your setup:
1 BHK / Small Flat
ESTIMATED NET BUDGET
₹35,000 - ₹65,000 (Net)
Recommended Equipment Mix:
1 kW On-Grid Solar System (2 x 550W Panels)
1 kW Single-Phase Grid-Tied Inverter
Optional: 100-Liter Domestic Solar Water Heater
Wipes out ₹1,000–₹1,300 monthly electric bill; ₹30,000 PM Surya Ghar subsidy applied.
2 BHK Independent Home
ESTIMATED NET BUDGET
₹65,000 - ₹1,10,000 (Net)
Recommended Equipment Mix:
2 kW to 2.5 kW On-Grid Solar System (4-5 Panels)
150-Liter Evacuated Tube Solar Water Heater
Intelligent Bi-directional net-metering with WBSEDCL
Runs 1 AC, fridge, TV, fans; saves ~₹2,200/month; ₹60,000 PM Surya Ghar subsidy applied.
3 BHK Villa / Duplex (Sweet Spot)
ESTIMATED NET BUDGET
₹1,07,000 - ₹1,60,000 (Net)
Recommended Equipment Mix:
3 kW to 3.3 kW Tier-1 DCR Solar Rooftop Plant
Elevated GI Gazebo Canopy Structure
200-Liter Pressurized Solar Water Heater
Optional 5 kWh Lithium Battery Storage for Blackouts
Eliminates 95% of power bills (saves ~₹3,200/mo); claims maximum ₹78,000 central DBT subsidy.
4. Site Feasibility & Net-Metering Checklist
Before purchasing any solar hardware, verify that your home passes these four technical feasibility checkpoints:
1. South Exposure & Shadow Analysis
Ensure at least 100 sq. ft. per kW of unshaded roof space. High parapet walls, water storage tanks, and neighboring buildings must not cast shadows on the designated array between 9:00 AM and 4:00 PM.
2. Rooftop Structural Load & Cyclone Rating
Standard concrete roofs easily hold 15–20 kg/m² solar dead weight. To withstand Bengal’s coastal cyclones, mounting structures must use Hot-Dip Galvanized (HDG) steel (80+ microns) or anodized aluminum rated for 170 km/h wind speeds.
3. Electrical Sanctioned Load Matching
Under WBSEDCL and CESC rules, your proposed solar capacity cannot exceed your electricity bill’s sanctioned connected load (kW). If you want a 3 kW system but your bill shows 2 kW load, Sunray Power Energy coordinates the load-enhancement petition alongside your solar application.
4. Dedicated Earthing & Lightning Space
Requires ground or courtyard space for 3 independent chemical earthing pits: one for DC surge protection, one for AC inverter earthing, and one dedicated exclusively to the copper lightning arrestor.
5. West Bengal Case Study: Combining Solar PV + Solar Water Heating
How the Mukherjee Residence Dropped Their Electric Bill by 94%
The Mukherjee family in South Bengal faced high winter electricity bills due to two electric geysers running for a family of five, combined with heavy summer air conditioning.
Rooftop Solar: 3.3 kW On-Grid (DCR TopCon)
Water Heating: 150-Liter Evacuated Tube System
Gross Investment: ₹2,22,000
PM Surya Ghar Subsidy: ₹78,000 (Credited in 22 days)
Net Investment: ₹1,44,000
Pre vs Post Bill: ₹3,800/mo → ₹125/mo
“Sunray Power Energy carried out the complete feasibility survey, installed our 3.3 kW solar panels on a raised gazebo, and integrated a 150L solar water heater. The ₹78,000 subsidy was credited directly to my bank account. Our electric bill is now practically zero year-round.” — A. Mukherjee, Homeowner
6. Sunray Power Energy: Complete Turnkey Solar Facilitation in West Bengal
Buying individual solar parts from disparate vendors creates maintenance chaos when components fail. Sunray Power Energy delivers a single, unified warranty umbrella. From National Portal documentation to WBSEDCL net-metering and annual maintenance, our local in-house engineering team handles everything.
Portal Registration
Full PM Surya Ghar portal filing ensuring guaranteed ₹78,000 DBT disbursement.
DISCOM Net-Metering
Turnkey liaison with WBSEDCL and CESC for bi-directional smart meter commissioning.
Tier-1 DCR Hardware
Only ALMM-listed TopCon/Mono PERC modules and European/Indian BIS inverters.
25-Year Local Support
Dedicated local technicians in Tamluk, Kolkata, and South Bengal for rapid service.
7. Frequently Asked Questions on Home Solar Products
What are the essential solar products needed to power a residential home?
The primary solar products for a residential home include: (1) High-efficiency rooftop PV panels (Mono PERC / N-Type TopCon), (2) A smart solar inverter (Grid-Tied string inverter or Hybrid bidirectional inverter), (3) Optional Lithium Ferro-Phosphate (LiFePO4) battery storage for blackouts, (4) An Evacuated Tube Collector (ETC) solar water heater to eliminate electric geyser bills, and (5) Surge protection devices and earthing kits.
Does the PM Surya Ghar subsidy cover solar water heaters and batteries?
The central PM Surya Ghar: Muft Bijli Yojana subsidy (up to ₹78,000) specifically applies to the solar photovoltaic (PV) generation capacity (panels and on-grid/hybrid inverter connected to net-metering). Solar water heaters and battery storage are standalone energy-saving assets that complement your rooftop PV system and drastically lower your household consumption.
How much electricity can a domestic solar water heater save in West Bengal winters?
In West Bengal homes, electric water geysers (typically 2 kW to 3 kW) account for 25% to 35% of winter electricity bills. A 100-liter or 200-liter Evacuated Tube Collector (ETC) solar water heater provides 60°C hot water on demand with zero electricity usage, saving approximately 1,200 to 1,800 units of electricity annually.
Can I add battery backup to my existing on-grid solar system later?
Yes. By installing an AC-coupled battery storage unit or opting for a Hybrid-Ready solar inverter initially, you can seamlessly add a Lithium battery bank in the future without replacing your existing solar panels or rewiring your distribution board.
Transform Your Home into a Self-Sustaining Clean Energy Hub
Get personalized equipment recommendations tailored to your rooftop dimensions, household appliances, and budget. Claim up to ₹78,000 in PM Surya Ghar central subsidies with Sunray Power Energy.
